This adapter allows you to attach a Fanatec QR1 or QR2 to one side and then attach the other side to a wheel. Commonly used with the tiny emulator.
This is the second version of this product. This version allows for both threaded and non-threaded attachment. Making it more adaptable.

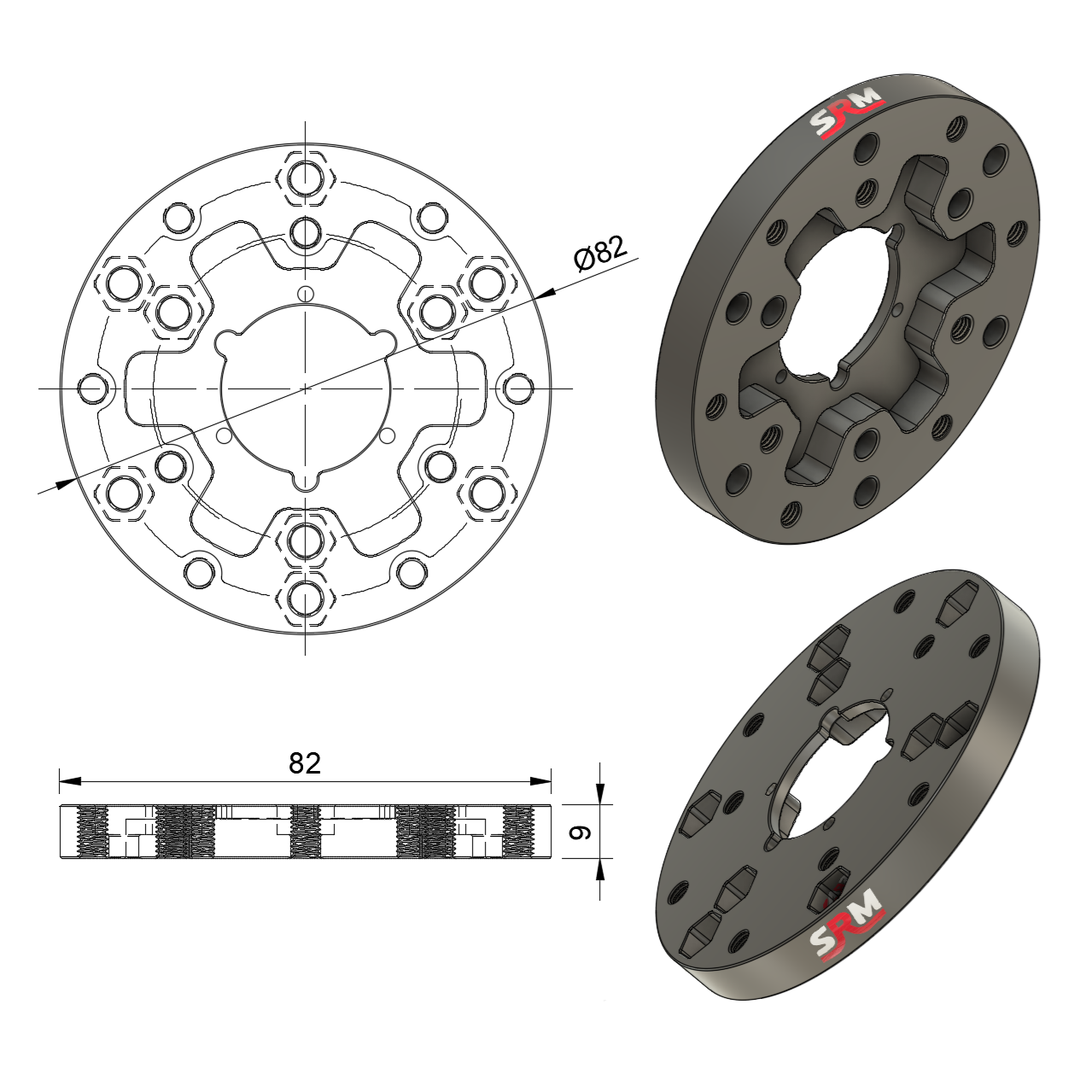

We have added the following hole patterns.
- 4 x M5 threaded holes for the QR1 or QR2 QR
- 4 or 5 x M5 or 5mm Holes for a 70mm hole pattern wheel or spacer. (depending which version your choose)
- 5 x M5 or 5mm holes for a 50.8mm hole pattern wheel or spacer.
- 3 x M5 threaded holes on the 52mm pattern for older Fanatec wheels
Included in the box are:
- 6 x M5 12mm long Cap Head bolts
- 6 x M5 12mm long Countersunk bolts
- 5 x Threaded Adapters parts
The standard version has 4 x holes on the 70mm hole pattern. while the extended version has an additional hole at the bottom, allowing a 3 hole 70mm PCD wheel to be bolted properly.
You can use the adapter to either bolt onto a Fanatec wheel so that you can connect a QR of your choice. Or you can use it to connect a wheel to the Fanatec QR.
There are lots of combinations. We use this on our V6 Emulator product.
Please remember that if you try and attach a non-Fanatec wheel to a Fanatec wheel base using this adapter you WILL NOT get any force feedback. The correct solutions for this are either the Fanatec Hubs or my Emulator products.
