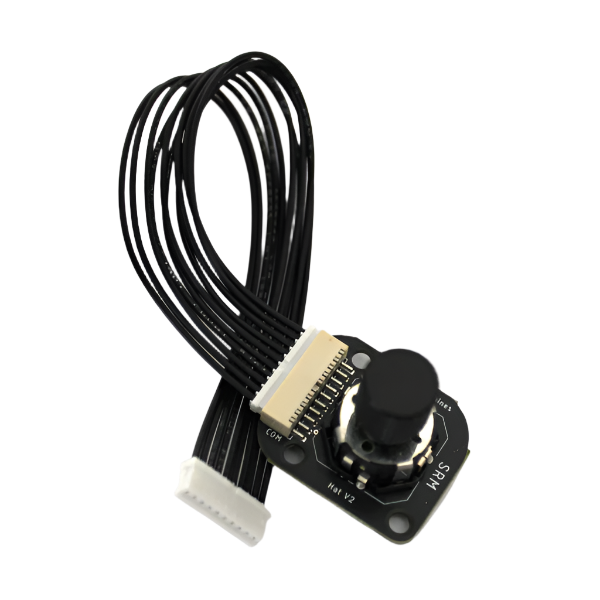

Hat switch to plug into our V7 Emulator Pro product.
Uses a custom PCB and ALPS hat switch.
The cable and Emulator allows up, down, left, right and press. You can wire twist by soldering to the back of the PCB, but this is not supported by the Emulator.
- Hat Switch fitted to Custom PCB
- Cable to attach to Emulator V7 Pro
- Can be used with Fanatec Universal Hub

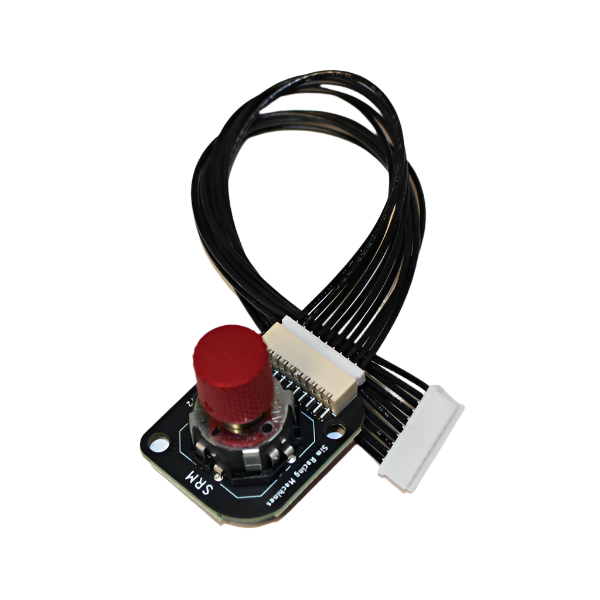

- Custom made Aluminium knob in either Black or Red **
- Has full operation
- Left
- Right
- Up
- Down
- Press
- Encoder right
- Encoder Left
** Knob supplied separately with a M2.5 grub screw - you will need to attach this yourself.
The cable is 10 pin to Molex 1.5mm pitch - Cable is 150mm long.
This is a DIY product - You must work out mounting it yourself as I don't have any fittings available
I recommend testing the orientation before drilling any holes in your wheel plate.
