Tiny SRM Emulator for Fanatec Wheelbase

A tiny version of my Emulator for Fanatec wheelbases.

Just like the other versions of my Emulator this makes the wheelbase think that a Fanatec wheel is attached and enable force feedback. Without a Fanatec wheel attached, Fanatec wheelbases do not give any force feedback.

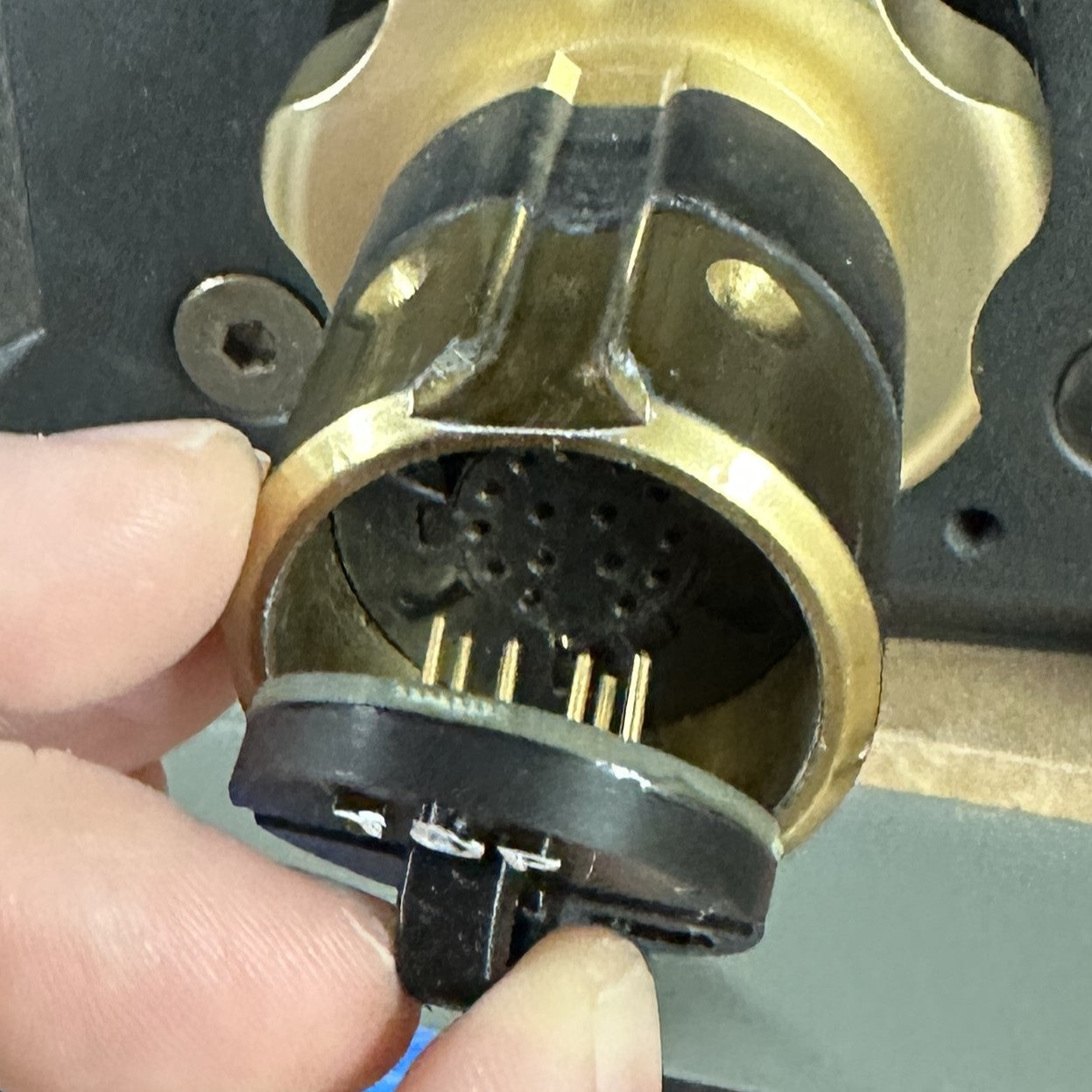

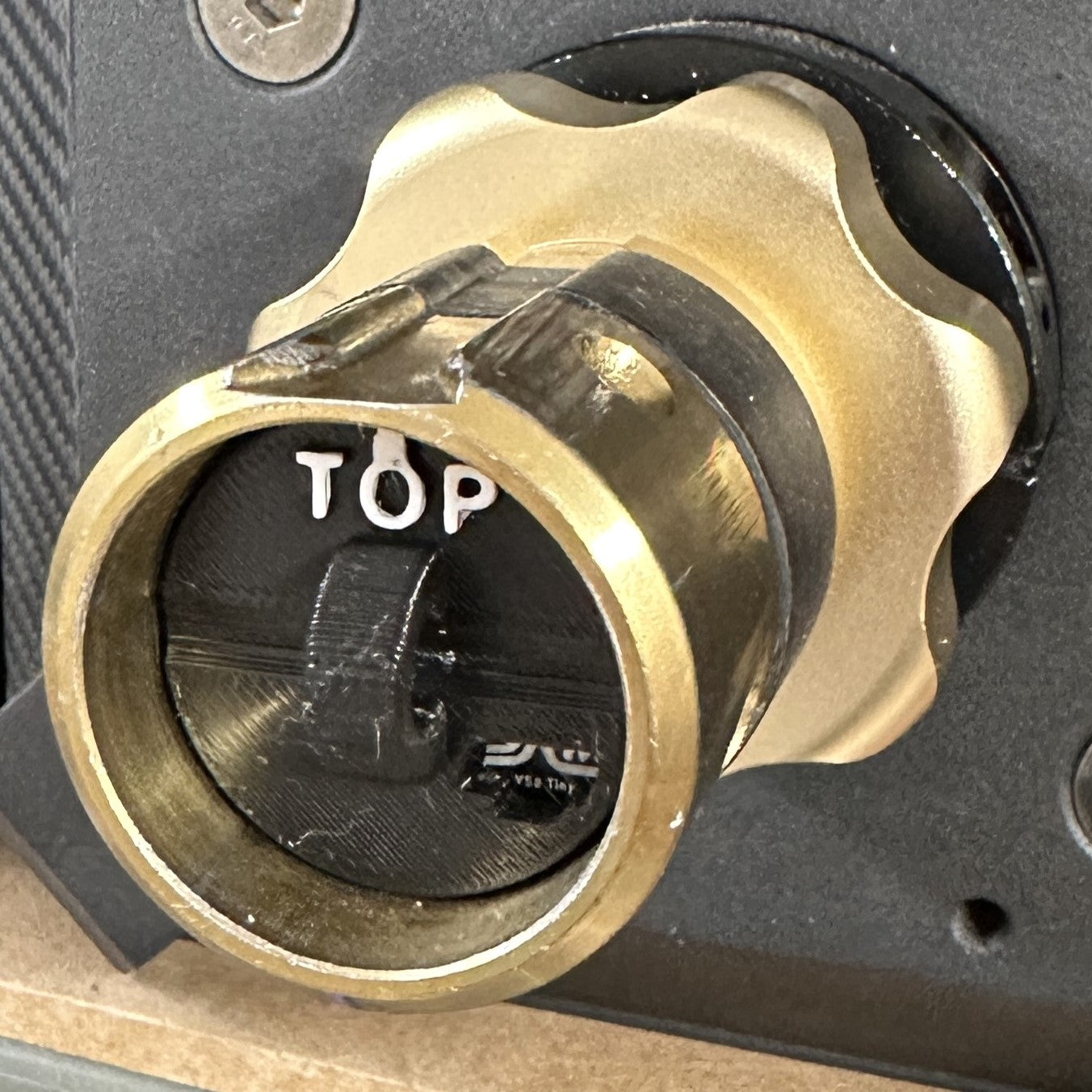

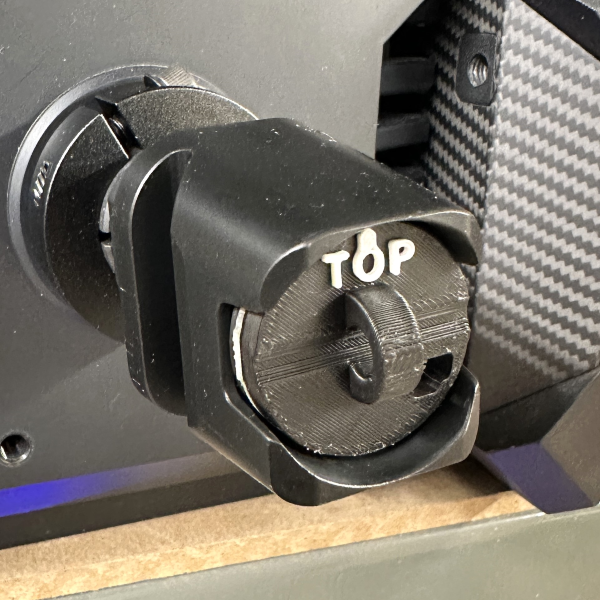

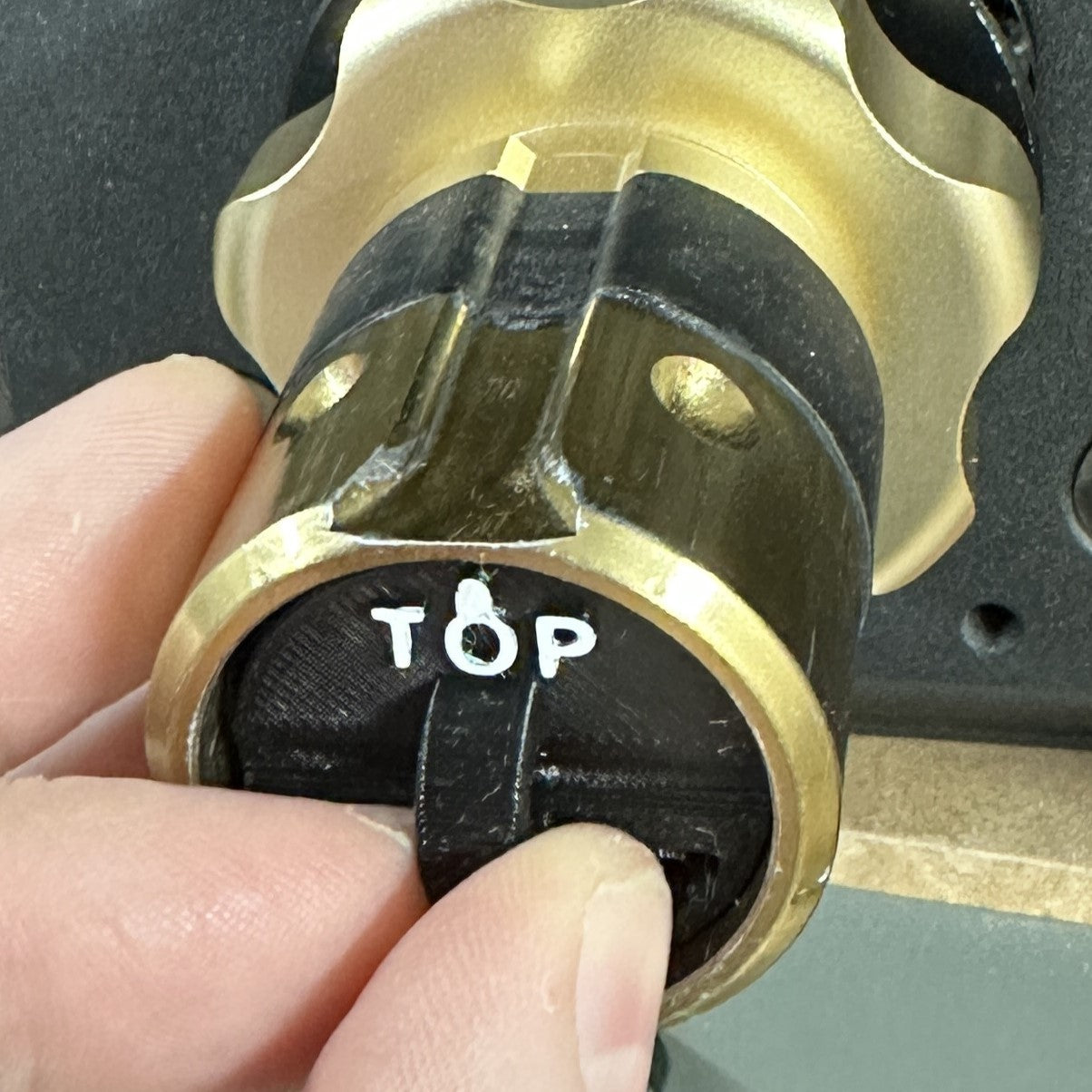

Simple insert this PCB into the base side QR. You can use a Fanatec QR still but you must not have the pin plug attached otherwise it will bend all of the pins. I will not accept any liability if you damage your wheel's by forgetting this is attached.

I was asked to make this device and so here it is.

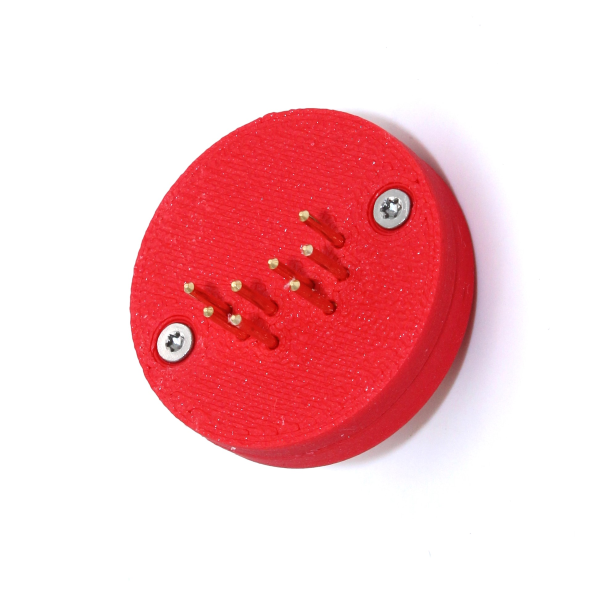

Design evolution... As my regular customers will know, I am always trying to improve my products and the tiny emulator has undergone a cosmetic change.  The latest products are electronically the same, but have the PCB fully enclosed in the case and uses bolts to attach everything.

There are NO button plugs on this PCB so all it will do is enable force feedback.

• Custom PCB

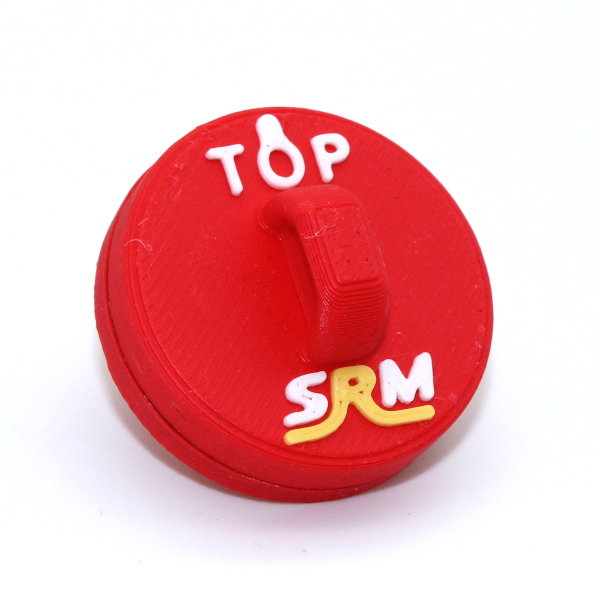

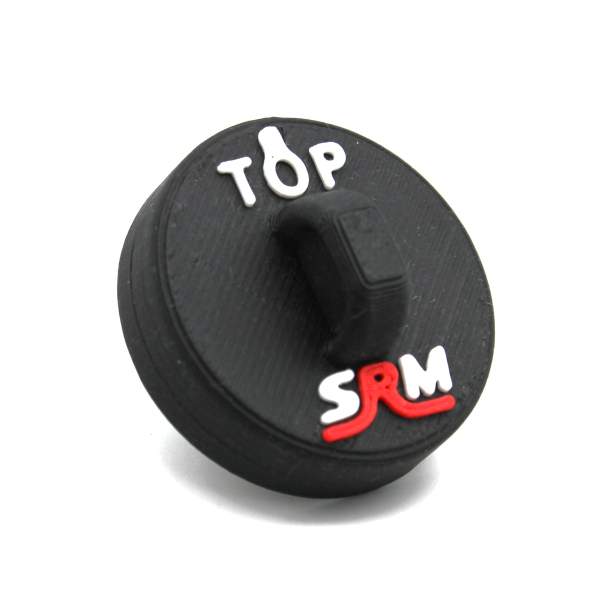

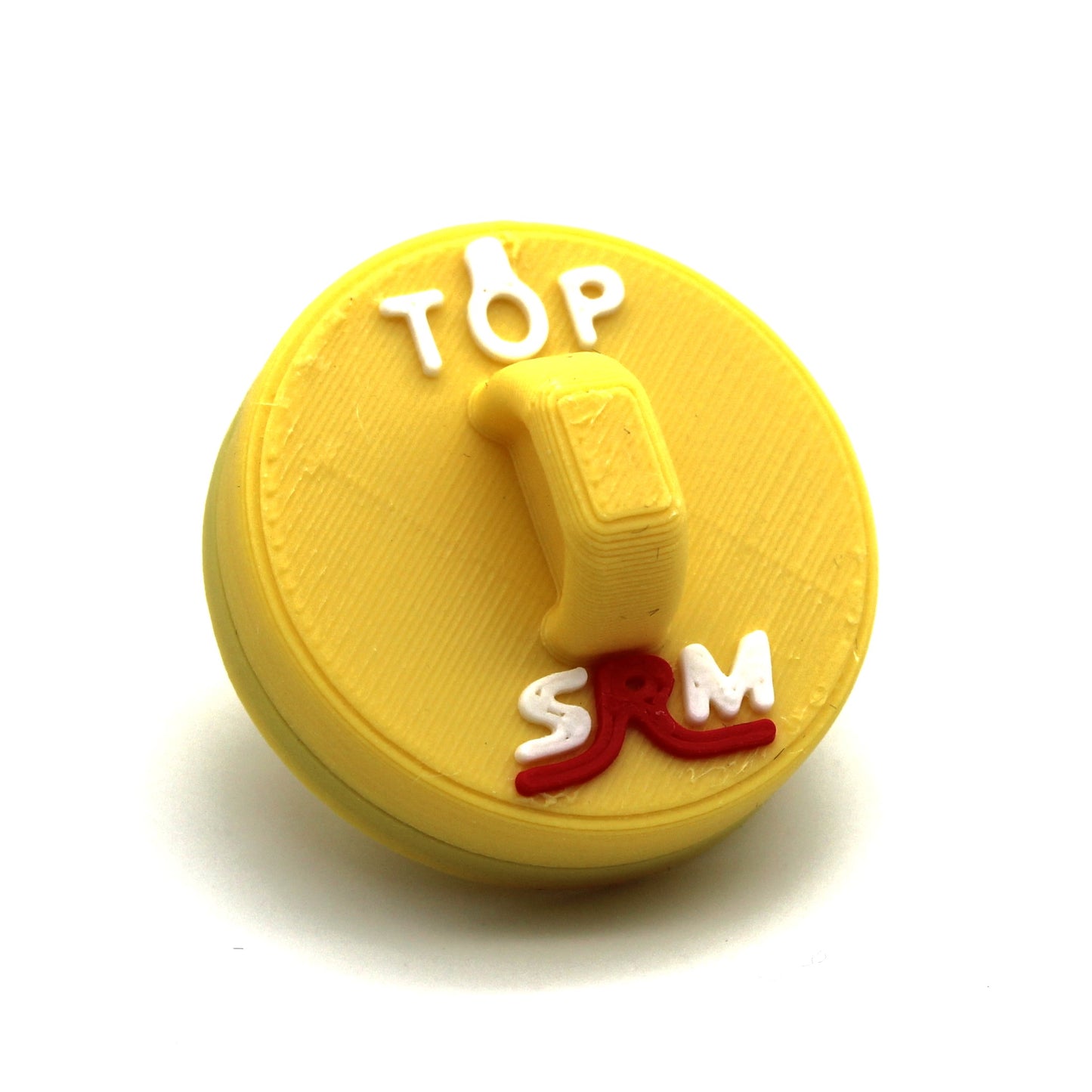

• 3D printed cover and pull handle

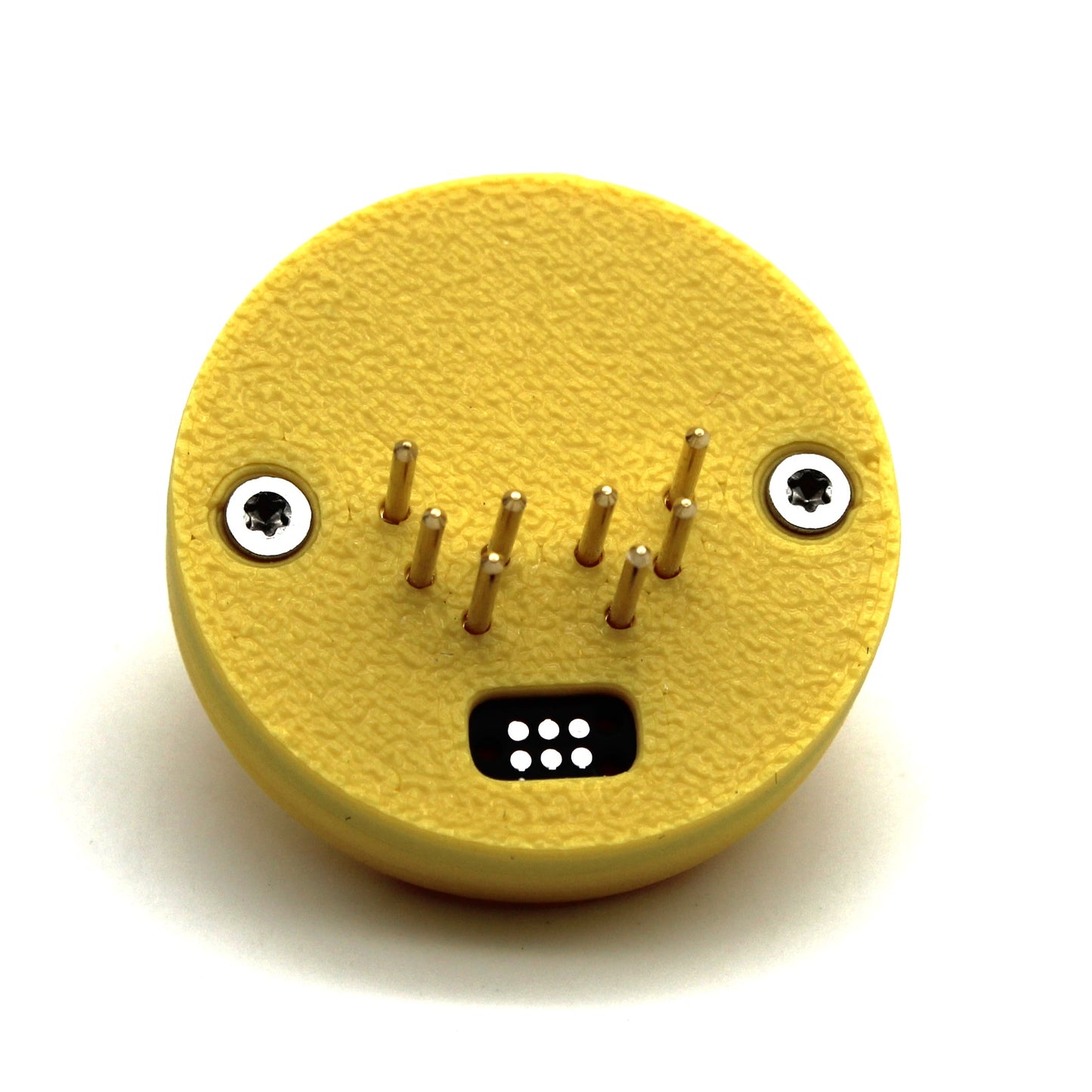

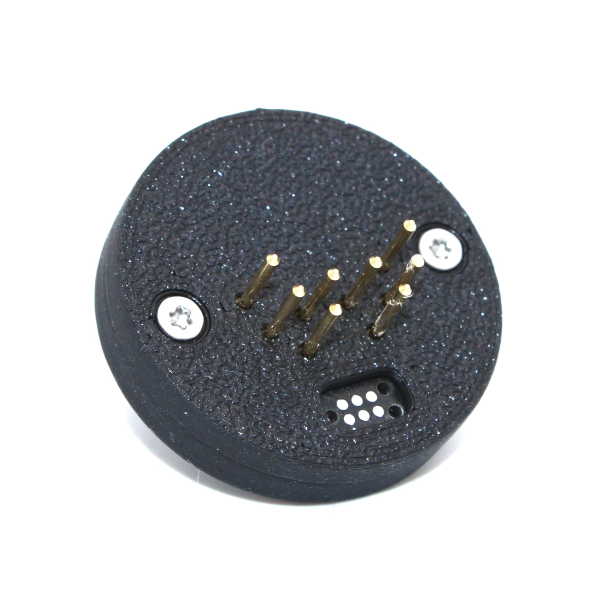

• 8 x gold plated pins

Works with...

• Podium DD1 and DD2
• CSW all versions 1, 2 and 2.5
• CSL Elite Xbox and PS4 versions
• Older CSL
• CSL DD
• CSL DD Pro
• CS DD
• CS DD+
• QR1 and QR2
