McLaren Wheel Gear Shifter Set (SRM 2nd Edition)
McLaren Wheel Gear Shifter Set (SRM 2nd Edition)
2 reviews
Regular price
$147.41 USD
Regular price
Sale price
$147.41 USD
Unit price
/
per
SKU:MCLARENSHIFTKITV2
View full details
Custom made gear shifters for the Fanatec McLaren steering wheel.
These are a new design based on my well respected Carbon Fibre gear shifters. The new version are made to make them easier to fit to the Fanatec McLaren steering wheel.
New - Want to see what the shifter looks like in CAD look here (You can open it up and look inside and move around it in 3D)... https://a360.co/3V3RjYD
* V1 wheel requires some soldering.
These are a new design based on my well respected Carbon Fibre gear shifters. The new version are made to make them easier to fit to the Fanatec McLaren steering wheel.
Whats new?
- Easier to fit than my previous version.
- No cutting or drilling of the steering wheel.
- Upgrade is fully reversable.
- Mixture of Carbon Fibre and 3D print.
- Plug for cable on shifter so it can be removed without opening the wheel again.
- 3mm thick multi layer real carbon fibre
- Cherry IP67 micro switch
- Black steel pin
- Ball Bearings on the arm for smooth reliable action
- Black coated N52 5x15mm magnets
New - Want to see what the shifter looks like in CAD look here (You can open it up and look inside and move around it in 3D)... https://a360.co/3V3RjYD
To fit...
- Fanatec McLaren GT3 V1 *
- Fanatec McLaren GT3 V2
Included...

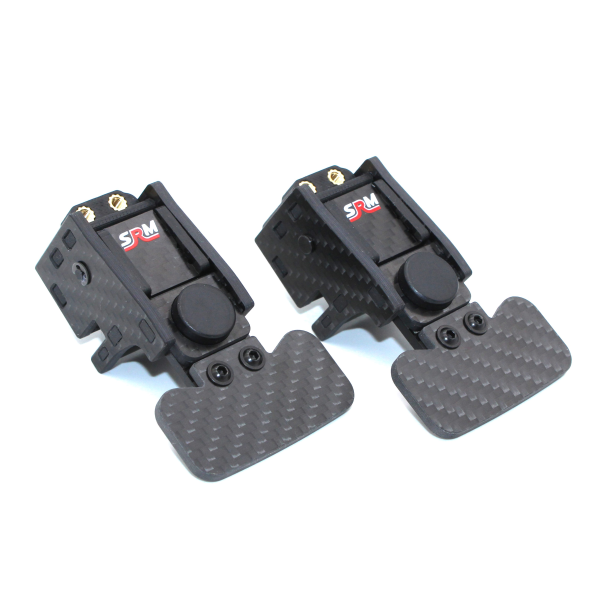

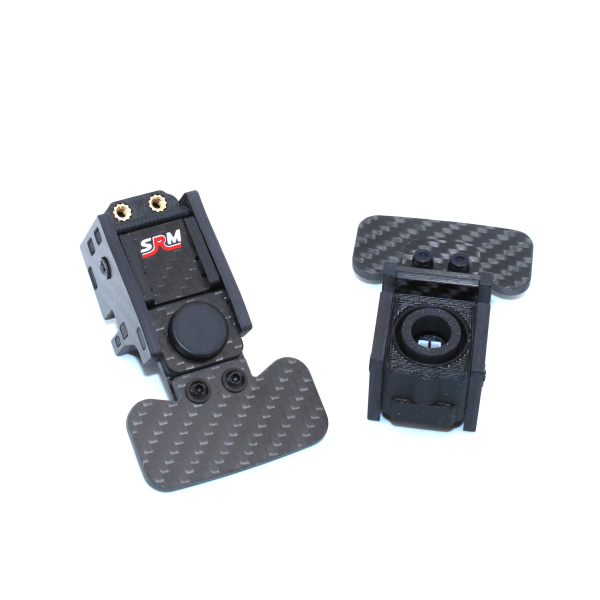

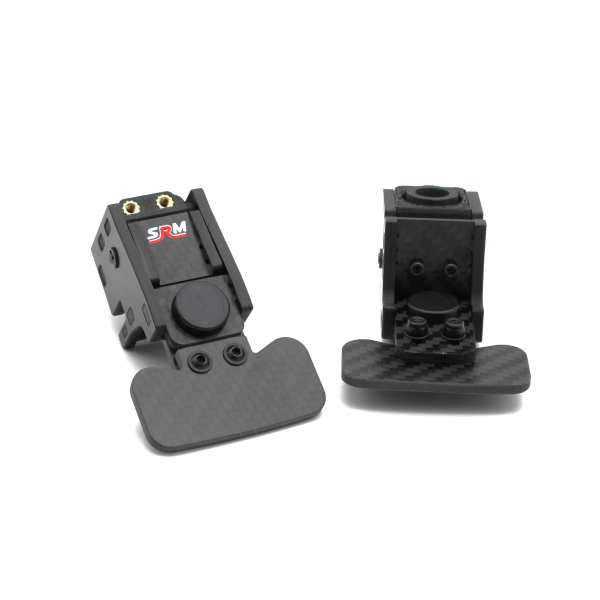

- 2 x Gear shifters with McLaren paddles fitted

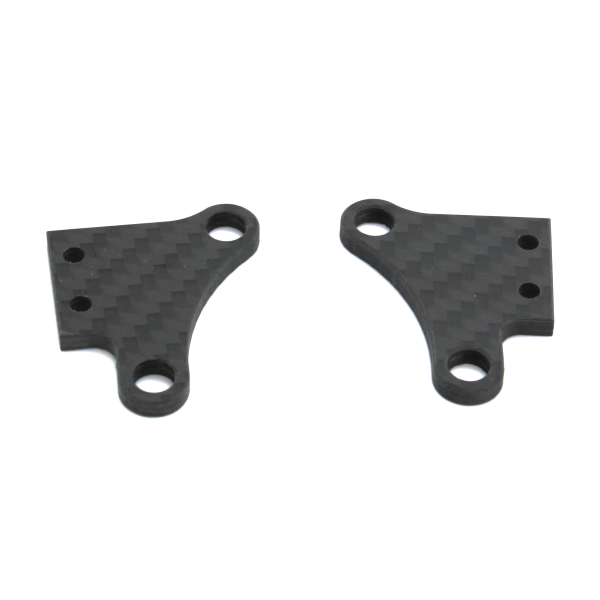

- 2 x Carbon Fibre mounting plates

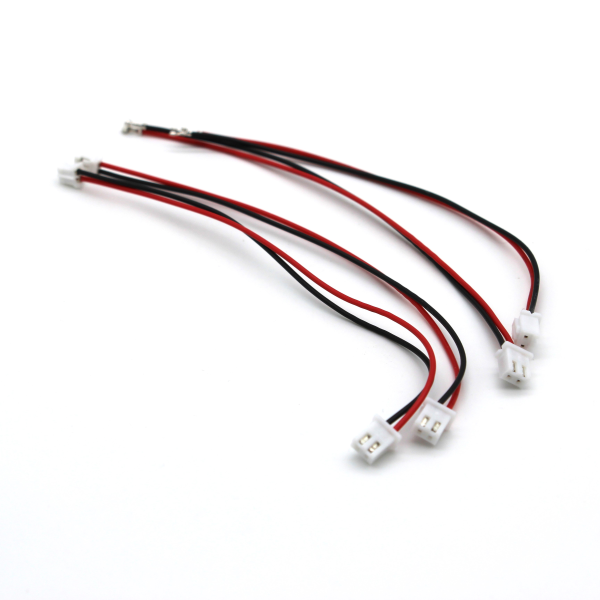

- 2 x JST PH 2.0 to Larger plugs on the wheel.
- 4 x M3 or M2.5 x 8mm Black button head bolts
Fitting...
Proper guide to follow but these are the basic steps:- Open the McLaren wheel
- Undo the wheel PCB
- Remove the Orange shifter paddle
- Remove the standard magnets
- McLaren V2
- Remove the shifter plug and optionally the shifter microswitches
- Fit the new cable to the wheel PCB plug and poke the cable through the magnet hole
- McLaren V1 -
- Cut the big plug off the new cable
- Solder the cable to the pad on the wheel PCB
- Poke the cable out of the magnet hole
- Re-fit the wheel PCB
- Remove the rubber insets on the shifter risers
- Plug the cable into the back of the shifter.

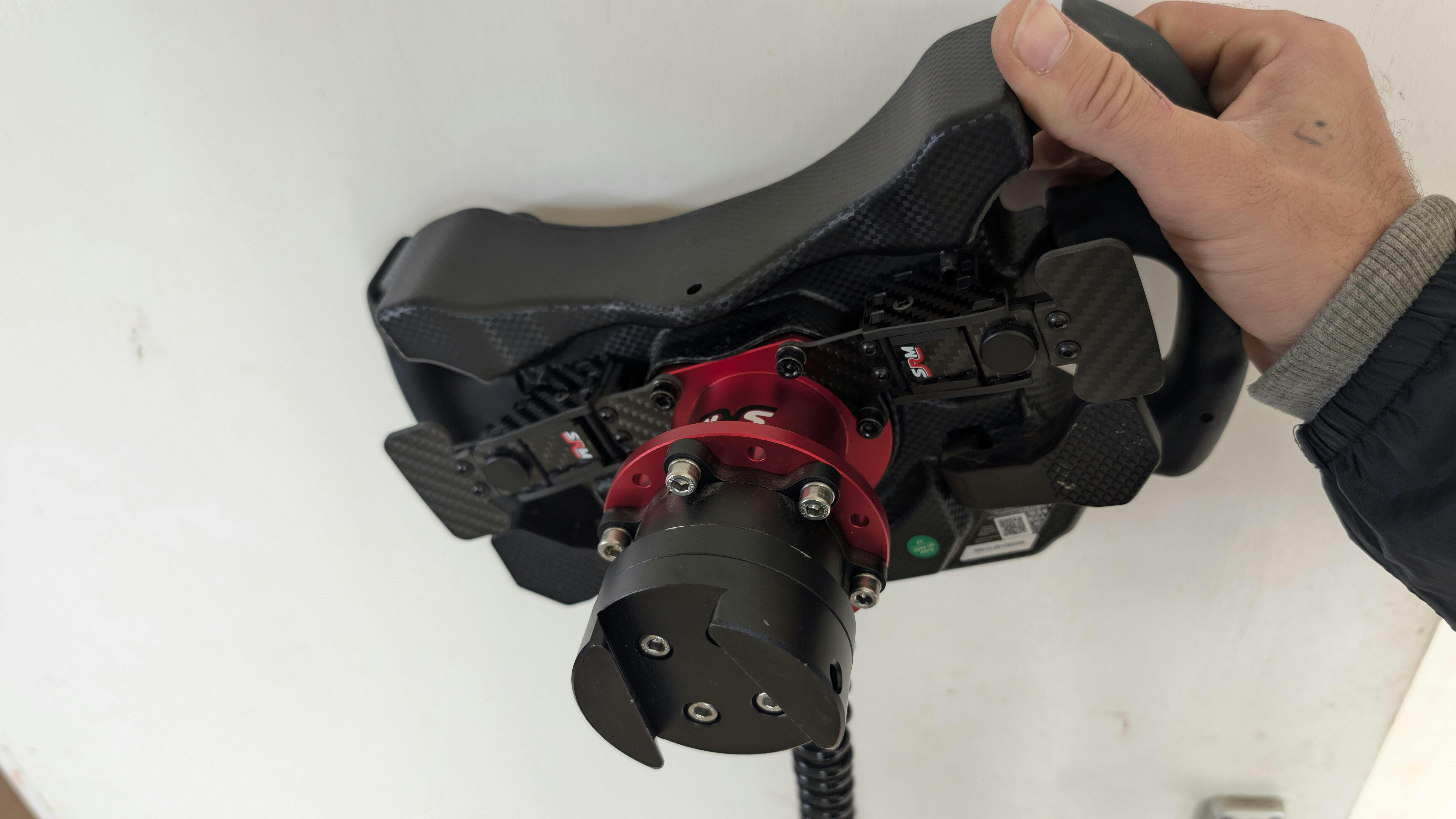

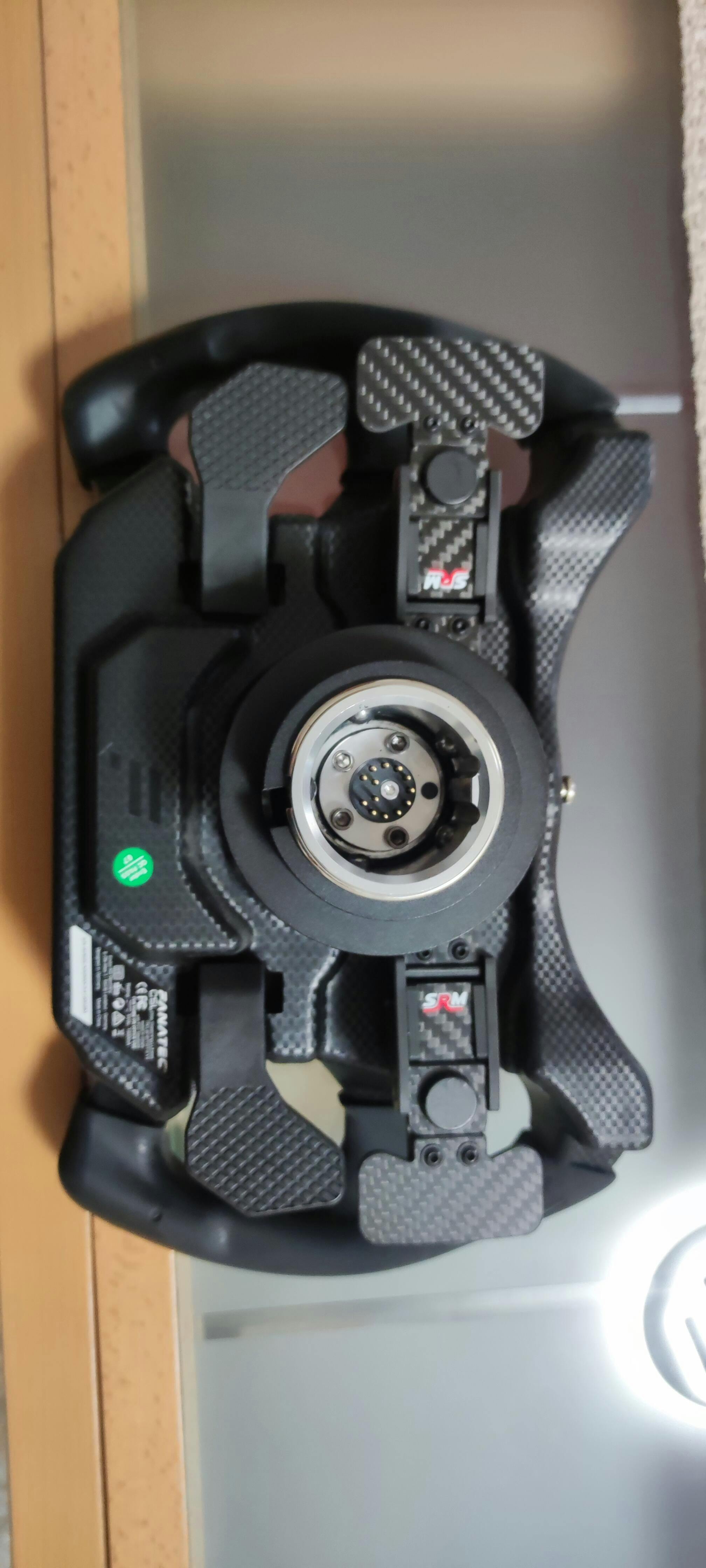

- Push the shifter into place on the wheel
- Remove the 2 bolts from the wheel QR
- Fit the Shifter mount to both the Shifter (2 x M3 or M2.5 bolts) and the QR
* V1 wheel requires some soldering.
