Shaft Extension Kit V2 For Fanatec Wheel Base

Shaft Extension Kit V2 For Fanatec Wheel Base

Regular price $62.21 USD
Regular price Sale price $62.21 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options

SKU:SRMFanShaftKitV2

View full details

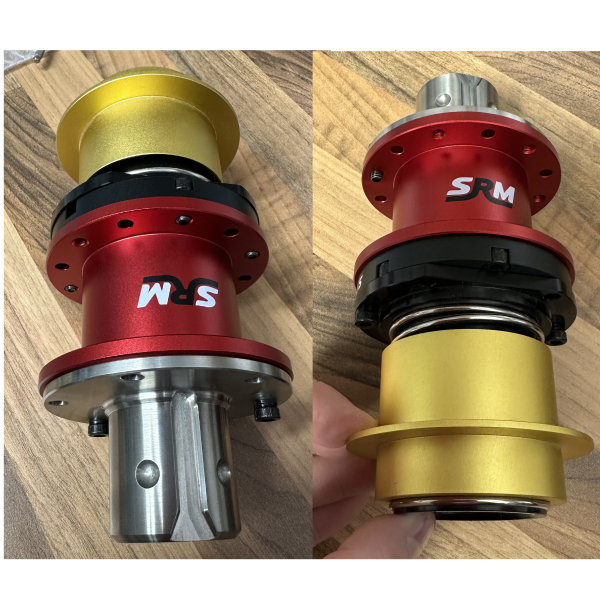

Designed to allow you to extend the distance a wheel sits from the motor. Basically it uses a wheel side and base side QR attached to a spacer and with a pin plug cable extension.

Can be used with QR1 or QR2

Basically the kit allows you to attach a wheel side QR on one side and a base side part to the other.  A cable allows the pin plug functions to pass through.


The parts included are...

  • SRM QR Adapter with Male Pin Plug
  • Male Pin Plug to HY 12 pin
  • HY Pin Plug Join PCB with Female plugs
  • M5 12mm long Bolts
  • 5 x threaded adapters (allows attaching threaded or non-threaded spacers)
  • Maximum cable length is 240mm (Combined parts)

The kit has 5 x mounting bolt holes for a 70mm hole pattern spacer.  Please note there is no hole at the top.

The Kit does not include a Fanatec QR or a spacer.

You need to select either the QR1 or QR2 base side (Male) part.  This will include the female pin plug and HY Cable.

To use:

  1. attach any spacer required should be a 70mm hole pattern to the adapter.
  2. Pass the cable through the spacer and plug the adapter and male QR part using the pin plug part.
  3. Attach the Male QR part to the other end of the spacer.
