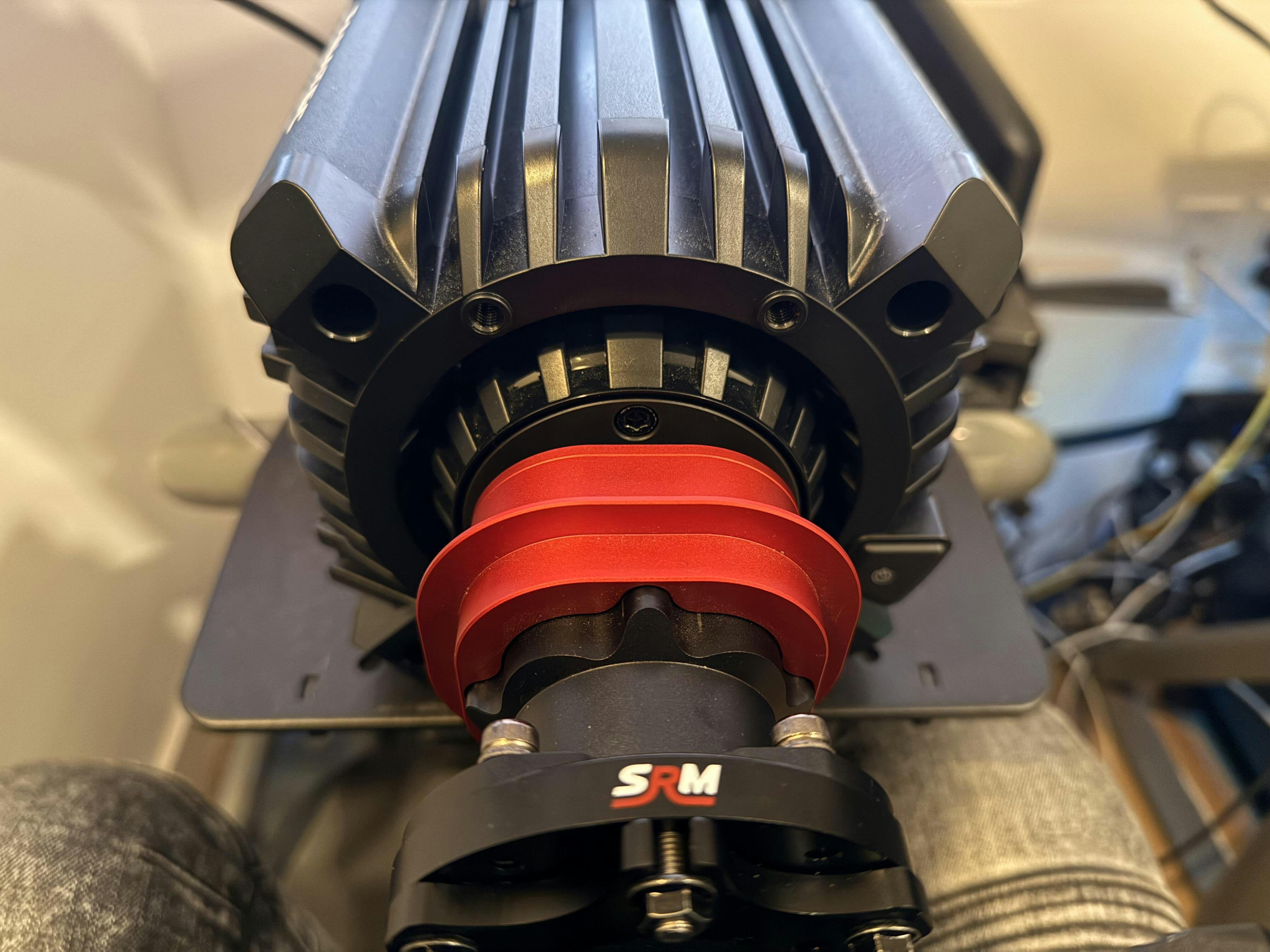

SRM Wheel Emulator V6 for Fanatec wheel base (Round 6 x 70mm Hole Version)
This version of the emulator has a different mounting plate with an additional 70mm mounting hole at the bottom. This is to allow it to be fitted better to wheels that have 6 x 70mm bolts and need the bottom and top hole. Other than that it is identical to the other emulator version. This version does not have the shifter connection on the side but allows all 6 Fanatec QR bolts to be used.

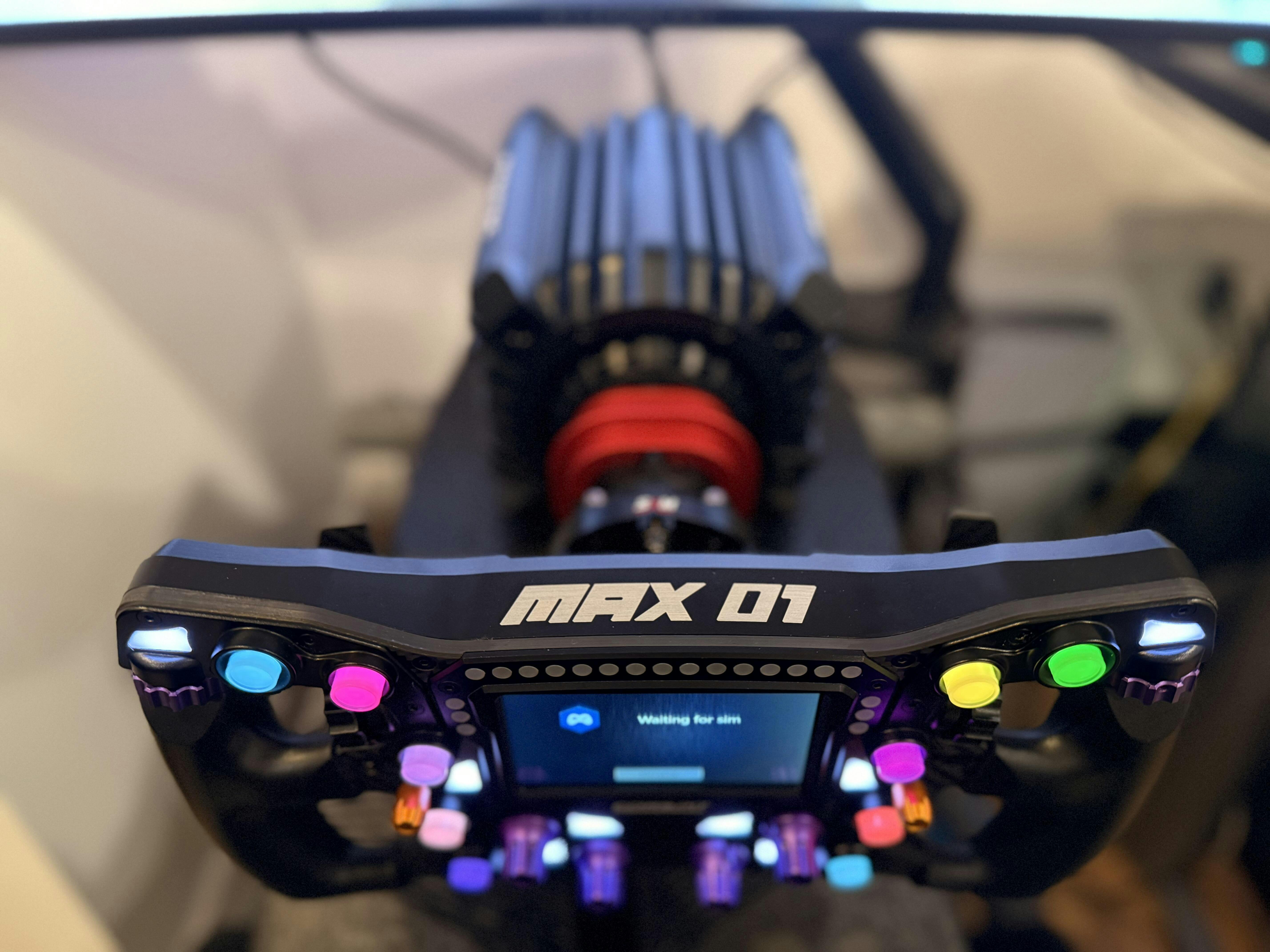

My Emulator makes the Fanatec wheel base think that a Fanatec wheel rim is attached.
Version 6 of the emulator builds on the success of V5 with these new benefits...
- 22% shorter than my V5 version.
- All electronics are inside the pin plug.
- Can accept threaded or non-threaded attachment on the 70mm and 50.8mm hole patterns.
The standard version includes the Aluminium case, Pin Plug and the main PCB which will just force the Fanatec wheelbase to give force feedback.
I have designed the new PCB's to plug together as needed, so you can upgrade later to add the button header board. To keep things simple these boards will also be used in the tiny emulator once existing stock it sold... meaning the PCB will be interchangeable between the full conversion kit and the tiny case.
If the Fanatec wheel base does not see a Fanatec wheel attached Force Feedback is not enabled.
- Emulator in custom Aluminum case which is Black Anodized.
- Mounting plate for the QR
- SRM male pin plug for Fanatec wheels
Although I am only stocking this version as the standard type you can add the Pro button module and the Ultimate shifter mounts from the accessories.
This product comes as just the Emulator with male pins to connect to the Fanatec wheel base. You must use a Fanatec Quick Release with the emulator otherwise you cannot attach it to the wheel base.
- Requires a Fanatec CSL QR1 (Plastic), CSW QR1 (Metal) or the new QR2 Quick release
- Fanatec sell the CSW QR1 and QR2 on their website, or we hold some stock here.
- Fitting the Quick release is very easy and just requires attaching 4 bolts
This product works with. these Fanatec wheel bases...
- Podium DD1 and DD2
- CSW all versions 1, 2 and 2.5
- CSL Elite Xbox and PS4 versions
- Older CSL
- CSL DD
- CSL DD Pro
- CS DD
- CS DD+
- If using the QR2 you will need the QR2 wheelbase part from Fanatec as well.
This is for PC use only - We do not expect it to work on an XBOX or PS4
Using the emulator for anything other than Force Feedback is not supported by me and is offered so that you can create your own DIY solution. I sell a few items to help with this, but you need to create your own solution.
The PCB's are very small at just 26mm diameter.
PRO Version includes button headers as shown in the photo. The Standard version will just give force feedback but can be updated to the pro later.
