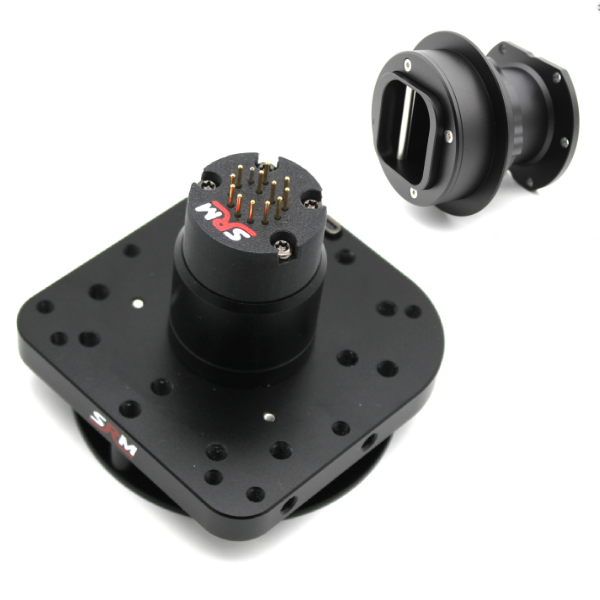

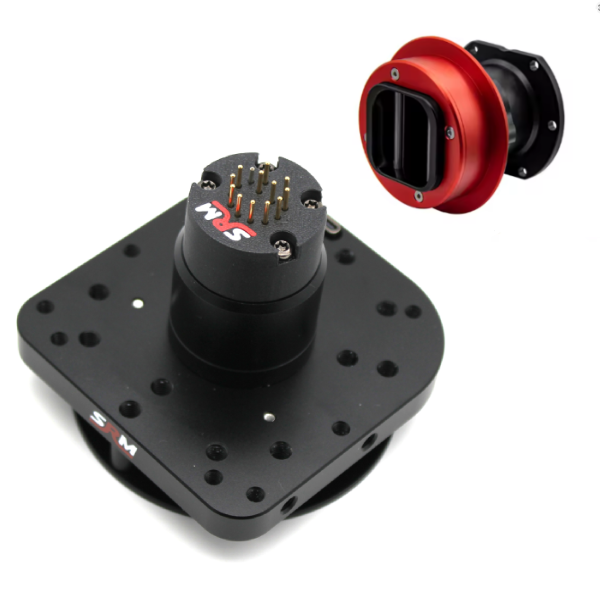

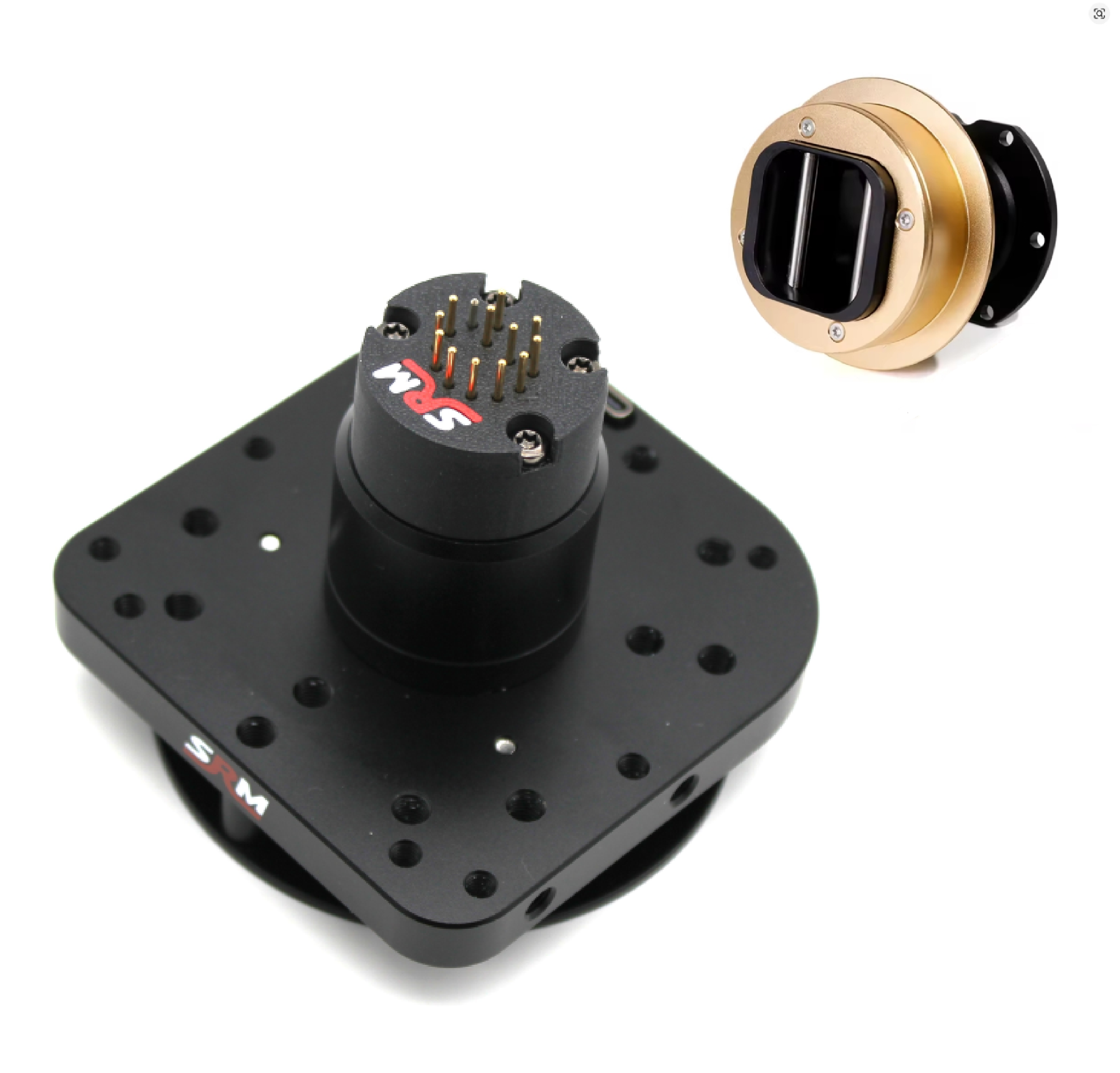

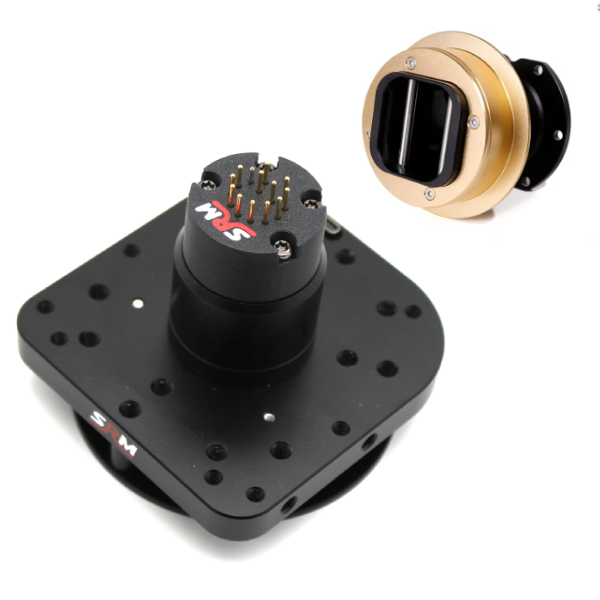

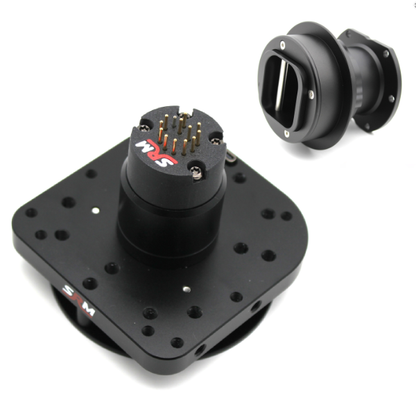

SRM Wheel Emulator V7
Pro for Fanatec wheel base with OEM QR2 fitted
Notice: It has been brought to my attention in the last 10 days that there is an issue with the Emulator V7 and the Podium DD1 and DD2 wheel bases, where connecting the emulator only works some of the time. After spending a lot of time on this i'm still not sure whats wrong and why it only affects the DD1 & DD2, but I fear it might require a hardware change. So please don't purchase this product for the DD1 or DD2 wheelbase at the moment.
Pro version features over the standard emulator V7
- Connections
- 4 x 3 Button pod headers (use your own or the Fanatec button pods)
- Hat Switch (Use our hat switch or the Fanatec one from the Universal Hub)
- Full functionality including encoder.
- Gear shifter and clutch plugs
- both left and right sides have a 6 pin Molex, 2 pin JST PH2 and 2 pin 2.54 pitch plugs, so you can attach just about any gear shifter from the Fanatec APM to our SRM Lite shifters.
- The Fanatec APM has full clutch including bite point ability.
- 5v Power
- Via a 2.54 pitch header, you can power a wheel. This is a DIY option.
- Fanatec USB C type connector for Fanatec Button Boxes.
- Just like the Podium hub you can use Fanatec button boxes
- Attachments
- Side bolt holes for Fanatec gear shifters
- Holes for attaching our shifter plate and Fanatec button pods
- Cover plate to keep all wires hidden
- Future
- Because of the way we designed the connection between the emulator and the button addon, in future we can add extra features like displays or even rumble.
What is included?
- Emulator V7 with pin plug
- Addon case / QR adapter
- Addon PCB
- Pair of Shifter adapter plates (For SRM Lite and many other shifters)
- Cover plate to hide wires.

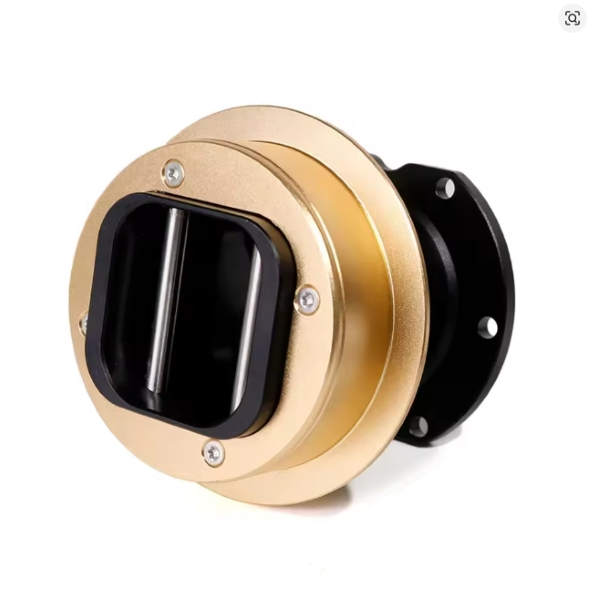

- Gold OEM QR2
- Pack of bolts
Everything is beautifully made from very high quality Aluminium which is machined, lightly sandblasted and then anodised black.
This is a premium product both in quality and quantity of connections.
Why should I buy an SRM product rather than one of the ones from China?
We came up with the emulator solution and we understand the way Fanatec wheels work better than anyone else in the world. We understand the way Fanatec encrypts steering wheels and can apply proper code to work in the same way Fanatec does. The Chinese versions are hard coded with a single wheel's details using a very basic method.
Emulator general details
This product is the right choice if you have a FANATEC wheelbase but want to use a different (non Fanatec) steering wheel on it.
There are two things you need if you want to use a non Fanatec steering wheel on a Fanatec wheelbase.
- The physical connection (adding a Fanatec QR to a non Fanatec steering wheel)
- Make the Fanatec wheelbase give force feedback.
Our Emulator product allows you to do both of these. It includes an adapter plate to allow bolting the Fanatec quick release (which has a non-standard bolt pattern) to a 70mm or 50.8mm hole profile wheel. (These are the most common hole patterns)
The Emulator basically pretends to be a Fanatec steering wheel which makes the wheelbase enable force feedback.
Please note that you cannot connect any wheel functions through the Emulator. Your wheel must connect directly to your PC either using wireless or a USB cable. Fanatec do not have any USB connections through the quick release. The Emulator is simply to allow attaching a Fanatec quick release and making the wheelbase give force feedback.
For a DIY or custom wheel we offer a Pro version of the Emulator. This will allow you to attach buttons, a Hat switch, gear shifters and even the Fanatec button addons. This is a different product although this version can be upgraded later if required.
Version 7 of the SRM Emulator allows the code on it to be changed via a USB cable. It is intended that you will be able to choose the Fanatec steering wheel you would like the emulator to show up as. The initial wheel will show as the Universal Hub V2
This product works with. these Fanatec wheel bases...
- Podium DD1 and DD2
- CSW all versions 1, 2 and 2.5
- CSL Elite Xbox and PS4 versions
- Older CSL
- CSL DD
- CSL DD Pro
- CS DD
- CS DD+
This is for PC use only - We do not expect it to work on an XBOX or PS4
Why is one pin shorter than the others?
This is not a mistake, it's something that Fanatec do too. The reason for it is so that before this pin connects to the wheelbase, the other pins are already connected. This pin is a ground and it tells the wheelbase that a new wheel is now attached and basically turns the wheel on.
