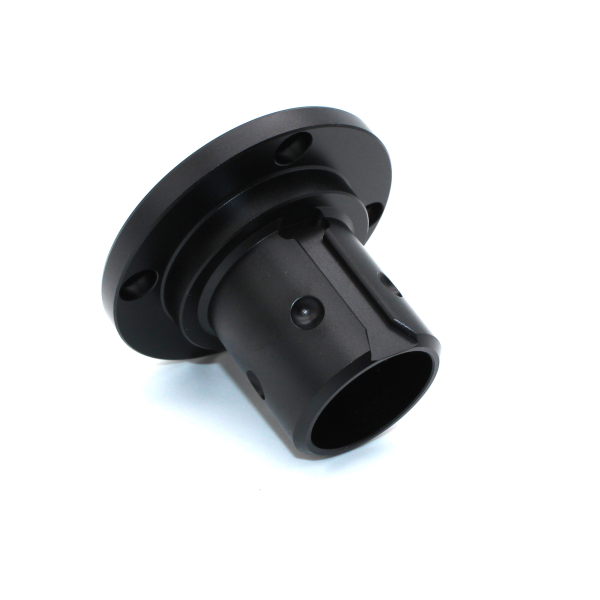

Our own QR1 male part

For Fanatec QR1 wheels we are able to offer our own male (Base Side) QR part.

Designed by Sim Racing Machines this QR is make from high quality Aluminium which is then lightly sandblasted before being black anodised.

This part was originally designed to allow the QR1 to be fitted to the CSW DD wheelbases but we have now adapted it so it can be mounted using a 4 hole bolt pattern onto a 70mm PDC part using an adapter.

We then add a 3D printed part inside to hold female pins and a cable to allow the data to pass through the QR.

Included:

• SRM Male QR1 part
• Adapter to 70mm Hole pattern
• Holder for Female pin plug part
• Female pin plug with cable for SRM 5.2x Base Side Conversion kit (Fitted)
• Pin plug washer (fitted)
• 5x M4 custom bolts to attach pin plug (Fitted)
• 4 x M5 10mm long black bolts to attach the QR to adapter
• 3 x M3 bolts to attach Pin holder to adapter plate

Requires M5 cap head bolts to attach to the Base side conversion kit (These are supplied with the kit but if you need a different length you need M5 CAP Head Bolts)

Please read this before ordering:

When I designed these parts I used the current Fanatec wheel plugs for the internal size.  It seems that very early wheels have a slightly wider pin plug in the wheels.  This plug has a very slightly bigger diameter.  I have only seen this on older wheels like the BMW V1, Formula Black / Carbon, Porsche 918 and the Universal Hub V1.  Even then, some are good while others are not.

If you have one of these pin plugs in your wheel then it will NOT fit inside this male QR.  In which case I offer two options.

1.  You can replace the Male QR pin plug in your wheel with one of my replacements. Be aware that this does mean opening your steering wheel.  Link
2. If you contact me I can machine the inside making it 0.5mm wider diameter.  Although I can do this on the lathe at the workshop, I cannot anodise the part here... This means that the inside of the QR will be silver (Bare Aluminium) and will show some machining marks.  This service is available on request only and will take a couple of days to complete.  If you need this please email or message on the chat before ordering.

If these are popular then I will order the next batch with the wider inside, but for now I have quite a lot of stock as described.
